In modern medical, scientific research and industrial fields, the safety and cleanliness of the environment are increasingly required. The biosafety airtight door, as an important barrier to protect these key places, is becoming the focus of attention in the industry with its excellent performance and innovative technology. The biosafety airtight doors produced by Linsen Purification Group have won the trust and praise of many customers with their innovative design, high-quality materials and exquisite craftsmanship. According to the sealing principle, the biosafety airtight doors produced by Linsen Purification Group can be divided into inflatable biosafety airtight doors and mechanical compression biosafety airtight doors.Inflatable biosecurity airtight door

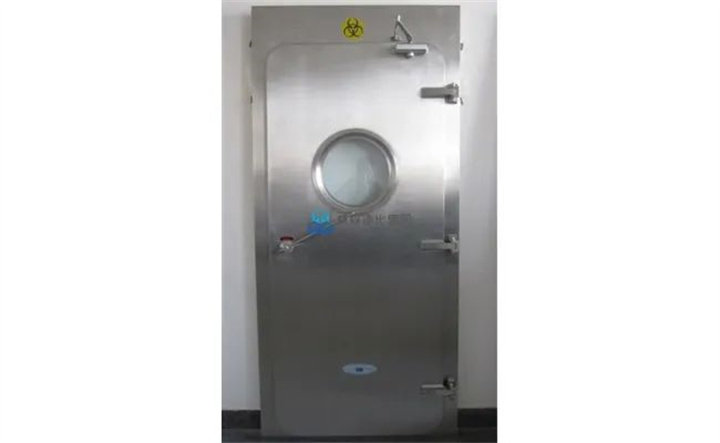

In the field of biosafety, the core working rooms of BSL-4 and ABSL-3/4 laboratories, the air lock room adjacent to the core working room and the chemical shower disinfection room, which we most often encounter, all have high levels of air tightness requirements. The inflatable biosafety airtight doors produced by Linsen Purification Group meet the corresponding airtight requirements very well. Inflatable biosafety airtight doors use rubber strips filled with compressed air to expand them to seal the door frame and door body. Generally, inflatable rubber strips are embedded around the door body, and after the expansion of the rubber strips, the door frame is squeezed to achieve a sealing effect.
Product advantage1, the door frame adopts the form of full frame around to ensure the sealing effect of the airtight door; 2, the four corners of the door frame and door are designed in concentric circles to better ensure the airtight effect; 3, the door frame and door are 50mm thick, flush with the manual panel wall after installation, beautiful appearance; 4, the product surface material can be 316 stainless steel; 5, can be used independently or multiple sets of combination, with a single door or multiple doors interlock characteristics; 6, the door can be installed on the right Angle double-layer window, style with clean steel door, window connection with a unique sealing design; 7, the use of integrated pull handle, electromagnetic interlock hidden in the handle inside (also optional mechanical handle); 8, the inflatable seal is made of silicone rubber, with acid resistance, heat resistance, cold resistance, atmospheric aging resistance and other properties, can withstand harsh disinfection and sterilization conditions. Mechanically compressed biosafety airtight door

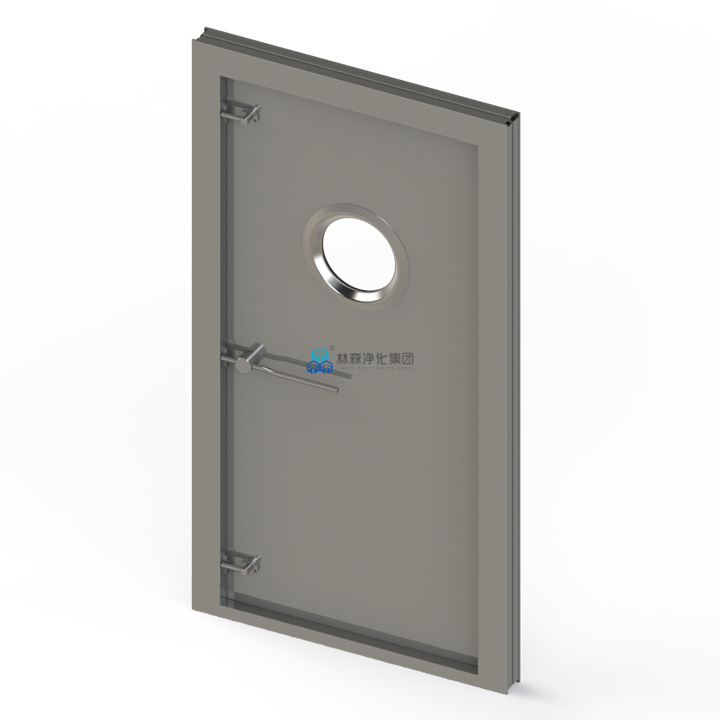

In the fields of pharmaceutical clean workshop and precision manufacturing, with the development of clean technology and the improvement of people's cleanliness requirements, it is often necessary to set airtight doors in the escape channel and the space with general air tightness requirements. At this time, we can choose a mechanically compressed biosafety airtight door that does not require electrical control. In the fields of pharmaceutical clean workshop and precision manufacturing, with the development of clean technology and the improvement of people's cleanliness requirements, it is often necessary to set airtight doors in the escape channel and the space with general air tightness requirements. At this time, we can choose a mechanically compressed biosafety airtight door that does not require electrical control.
Product advantage1, the door frame adopts the form of full frame around to ensure the sealing effect of the airtight door; 2, the general design of the hinge multi-dimensional adjustment hinge, can achieve subtle adjustment of the door body; 3, the door frame installation slot, can be easily installed with manual panel wall; 4, the product surface material can be 316 stainless steel; 5, the door frame is set tight sealing frame, sealant is installed around the inside of the door body; 6, the door can be installed on the same shape window, style with clean steel door, window connection with a unique sealing design; 7, the door lock mechanism adopts multi-point linkage mechanism, through the operation of a single point handle to achieve synchronous locking; 8, the compact seal is made of silicone rubber, with acid resistance, heat resistance, cold resistance, atmospheric aging resistance and other properties, can withstand harsh disinfection and sterilization conditions. As an excellent service provider of clean room engineering system solutions in the industry, Linsen Purification Group selects environmentally friendly raw materials, implements strict process standards, and strives to provide better and reliable products for the clean industry. Linsen Purification is committed to bringing the clean "room" world to every industry, every organization, and everyone.
